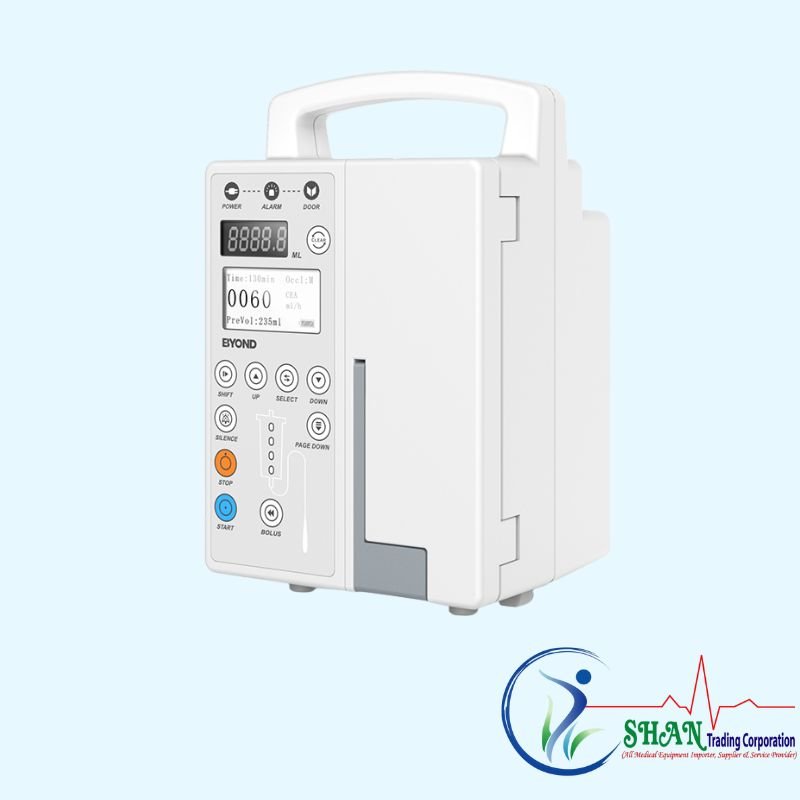

Beyond BYS-820 Infusion Pump
Description:
The Beyond BYS-820 Infusion Pump is a high-performance volumetric infusion pump trusted by healthcare professionals for its accuracy and durability. It supports a wide range of clinical applications with its programmable infusion modes (e.g., continuous infusion, timed infusion). The pump is equipped with a high-precision sensor system to detect occlusions and air-in-line, providing an extra layer of safety. Its intuitive interface and large drug library help minimize setup errors. The BYS-820 is an essential piece of medical equipment for hospitals and clinics across Bangladesh, ensuring dependable fluid delivery for adult, pediatric, and neonatal patients.
Key Features:
- High-Definition LCD Display.
- Volumetric Control.
- Unique Voice Alarm System.
- Compatibility.
- KVO and Bolus Functions.
- Multiple Work Modes.
- Anti-Free Flow Mechanism.
Specification Table
| Feature | Description |
| Brand | Beyond |
| Model | BYS-820 |
| Channel Type | Volumetric, 1-channel |
| Infusion Rate | 1 ml/h – 1200 ml/h |
| Flow Rate Accuracy | ±5% (after correct calibration) |
| Mechanical Precision | ±2% |
| Occlusion Pressure | Three levels: High, Medium, Low |
| Alarm System | Voice, Audible, and Visual alarms |
| KVO Rate | Adjustable, 1-5 ml/h |
| Total Infusion Volume | 0 – 9999.9 ml |
| Power Source | AC 100-240V, 50/60Hz; Internal rechargeable battery |
| Dimensions | Approx. 140mm(L) x 157mm(W) x 220mm(H) |
| Weight | Approx. 1.8 kg |
